バッチ処理
クラウド基盤を用意して、大量の画像や保存済み動画に対して Workflows を実行します。
概要
Web アプリ

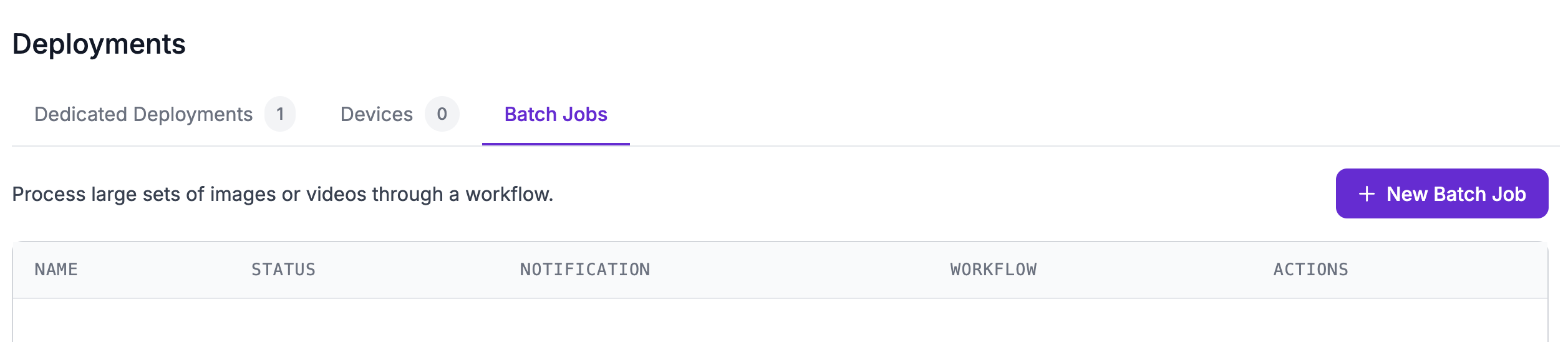

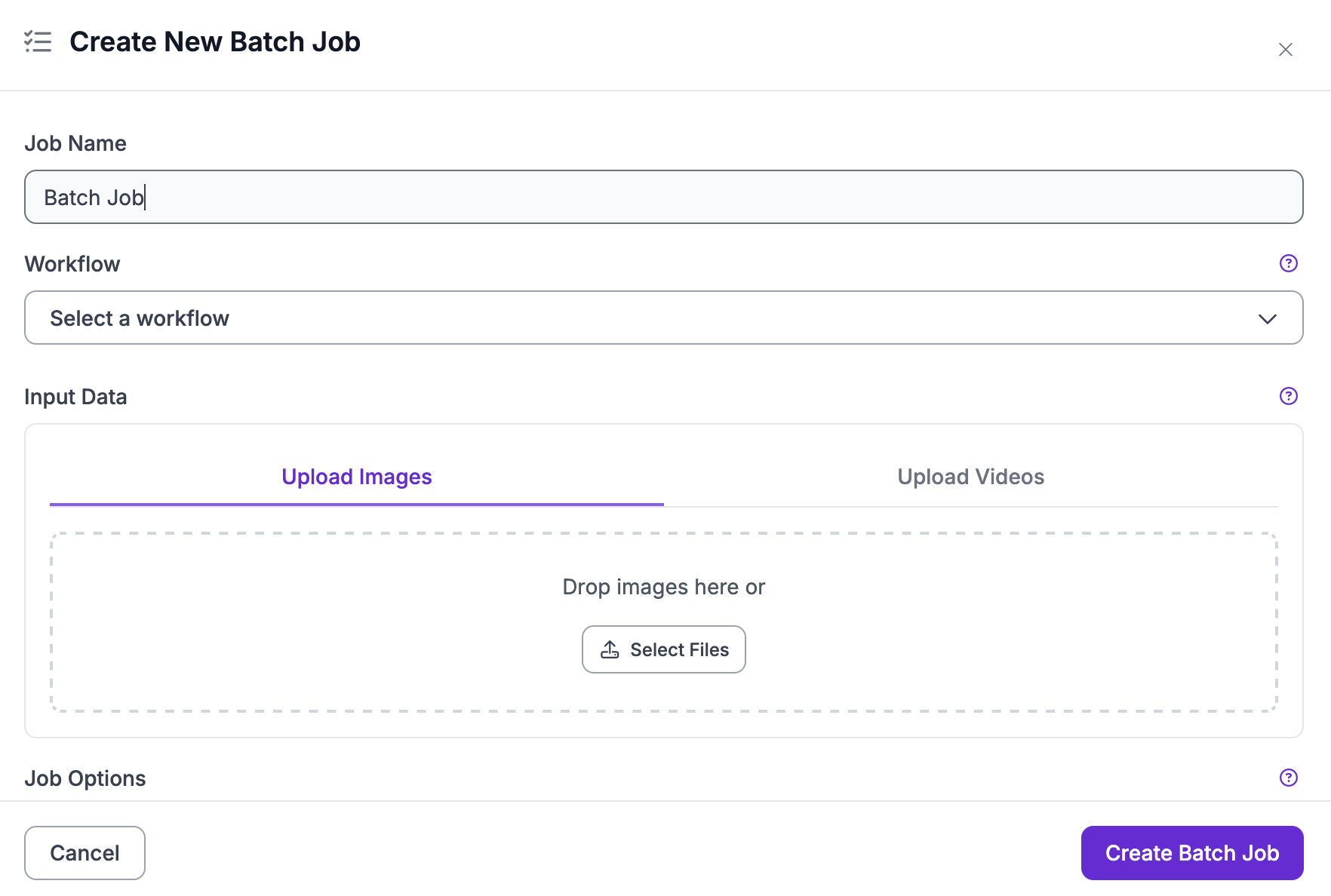

Batch Processing ジョブを作成する
Workflow を選択
画像または動画をアップロード

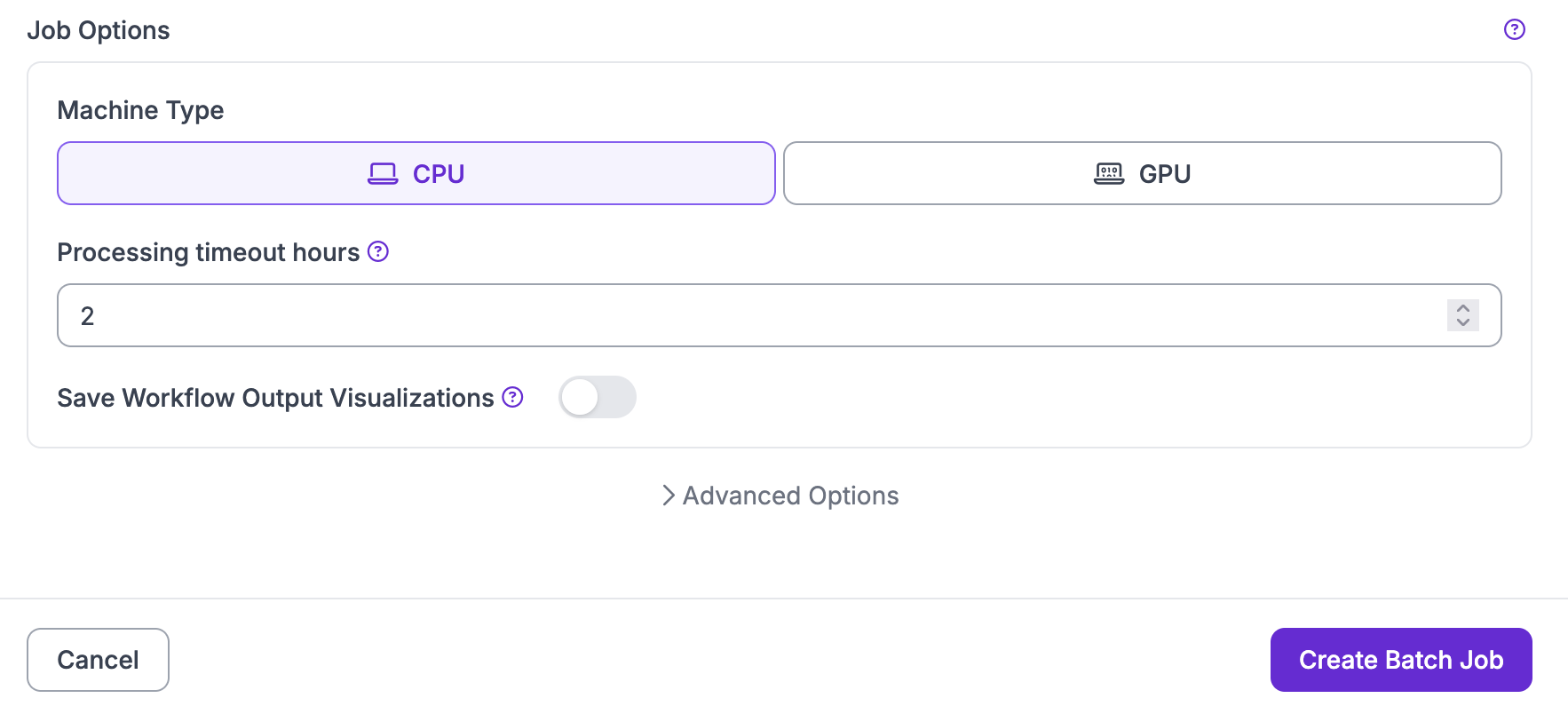

ハードウェアを設定
ジョブを開始
ジョブの進行状況を監視
アプリから Workflow を実行
Asset Library から
Datasource がミラーリングすると自動的に
API または CLI からジョブを実行
HTTP API
データを取り込む
動画をアップロード
Your Roboflow workspace identifier.
Batch identifier. Lowercase, max 64 chars: letters, digits, hyphens, underscores.
^[a-z0-9_-]+$Your Roboflow API key.
Name of the video file (e.g. my_video.mp4).
Signed URL details for uploading the video.
okPOST /data-staging/v1/external/{workspace}/batches/{batch_id}/upload/video?api_key=text&fileName=text HTTP/1.1
Host: api.roboflow.com
Accept: */*
Signed URL details for uploading the video.
{
"status": "ok",
"signedURLDetails": {
"uploadURL": "text",
"method": "PUT",
"extensionHeaders": {
"Content-Type": "application/octet-stream",
"x-goog-content-length-range": "1,1073741824"
},
"maxFileSize": 1073741824
}
}画像をアップロード
Your Roboflow workspace identifier.
Batch identifier. Lowercase, max 64 chars: letters, digits, hyphens, underscores.
^[a-z0-9_-]+$Your Roboflow API key.
Name of the image file.
The image file to upload.
Image uploaded successfully.
okPOST /data-staging/v1/external/{workspace}/batches/{batch_id}/upload/image?api_key=text&fileName=text HTTP/1.1
Host: api.roboflow.com
Content-Type: multipart/form-data
Accept: */*
Content-Length: 17
{
"file": "binary"
}Image uploaded successfully.
{
"status": "ok"
}画像を一括アップロード
Your Roboflow workspace identifier.
Batch identifier. Lowercase, max 64 chars: letters, digits, hyphens, underscores.
^[a-z0-9_-]+$Your Roboflow API key.
Signed URL details for uploading a tar archive.
okPOST /data-staging/v1/external/{workspace}/batches/{batch_id}/bulk-upload/image-files?api_key=text HTTP/1.1
Host: api.roboflow.com
Accept: */*
Signed URL details for uploading a tar archive.
{
"status": "ok",
"signedURLDetails": {
"shardId": "123e4567-e89b-12d3-a456-426614174000",
"uploadURL": "text",
"method": "PUT",
"extensionHeaders": {
"Content-Type": "application/x-tar",
"x-goog-content-length-range": "1,536870912"
},
"maxNumberOfImages": 500,
"maxShardSize": 536870912
}
}バッチのステータスを確認
Your Roboflow workspace identifier.
Batch identifier. Lowercase, max 64 chars: letters, digits, hyphens, underscores.
^[a-z0-9_-]+$Your Roboflow API key.
Batch item count.
okNumber of items in the batch.
42GET /data-staging/v1/external/{workspace}/batches/{batch_id}/count?api_key=text HTTP/1.1
Host: api.roboflow.com
Accept: */*
Batch item count.
{
"status": "ok",
"count": 42
}シャードのアップロード詳細を確認
Your Roboflow workspace identifier.
Batch identifier. Lowercase, max 64 chars: letters, digits, hyphens, underscores.
^[a-z0-9_-]+$Your Roboflow API key.
Pagination token from a previous response.
Paginated list of batch shards.
okList of shard objects.
Token for fetching the next page of results. null if no more pages.
GET /data-staging/v1/external/{workspace}/batches/{batch_id}/shards?api_key=text HTTP/1.1
Host: api.roboflow.com
Accept: */*
Paginated list of batch shards.
{
"status": "ok",
"shards": [
{}
],
"nextPageToken": "text"
}ジョブを開始
Your Roboflow workspace identifier.
Job identifier. Lowercase, max 20 chars: letters, digits, hyphens, underscores.
^[a-z0-9_-]+$Your Roboflow API key.
Job type.
Maximum cumulative machine runtime in seconds across all parallel workers.
3600Webhook URL for job completion notifications. Custom webhook headers are not yet supported. The only header sent is Authorization: Bearer rf_{workspace_id}.
Job started successfully.
okPOST /batch-processing/v1/external/{workspace}/jobs/{job_id}?api_key=text HTTP/1.1
Host: api.roboflow.com
Content-Type: application/json
Accept: */*
Content-Length: 415
{
"type": "simple-image-processing-v1",
"jobInput": {
"type": "staging-batch-input-v1",
"batchId": "text"
},
"computeConfiguration": {
"type": "compute-configuration-v2",
"machineType": "cpu",
"workersPerMachine": 4
},
"processingTimeoutSeconds": 3600,
"processingSpecification": {
"type": "workflows-processing-specification-v1",
"workspace": "text",
"workflowId": "text",
"aggregationFormat": "jsonl"
},
"notificationsURL": "https://example.com"
}Job started successfully.
{
"status": "ok"
}ジョブの進行状況を監視
ジョブのステータスを取得
Your Roboflow workspace identifier.
Job identifier. Lowercase, max 20 chars: letters, digits, hyphens, underscores.
^[a-z0-9_-]+$Your Roboflow API key.
Job status details.
okCurrent job status (e.g. pending, processing, completed, failed).
Processing progress as a fraction between 0 and 1.
GET /batch-processing/v1/external/{workspace}/jobs/{job_id}?api_key=text HTTP/1.1
Host: api.roboflow.com
Accept: */*
Job status details.
{
"status": "ok",
"jobStatus": "text",
"progress": 1
}ジョブステージを一覧表示
Your Roboflow workspace identifier.
Job identifier. Lowercase, max 20 chars: letters, digits, hyphens, underscores.
^[a-z0-9_-]+$Your Roboflow API key.
List of job stages.
okList of stage objects. Each stage has an ID and an output batch ID.
GET /batch-processing/v1/external/{workspace}/jobs/{job_id}/stages?api_key=text HTTP/1.1
Host: api.roboflow.com
Accept: */*
List of job stages.
{
"status": "ok",
"stages": [
{}
]
}ステージタスクを一覧表示
Your Roboflow workspace identifier.
Job identifier. Lowercase, max 20 chars: letters, digits, hyphens, underscores.
^[a-z0-9_-]+$The stage identifier.
Your Roboflow API key.
Pagination token from a previous response.
Paginated list of tasks.
okList of task objects.
Token for fetching the next page of results. null if no more pages.
GET /batch-processing/v1/external/{workspace}/jobs/{job_id}/stages/{stage_id}/tasks?api_key=text HTTP/1.1
Host: api.roboflow.com
Accept: */*
Paginated list of tasks.
{
"status": "ok",
"tasks": [
{}
],
"nextPageToken": "text"
}結果をエクスポート
出力パートを一覧表示
Your Roboflow workspace identifier.
Batch identifier. Lowercase, max 64 chars: letters, digits, hyphens, underscores.
^[a-z0-9_-]+$Your Roboflow API key.
List of batch parts.
okGET /data-staging/v1/external/{workspace}/batches/{batch_id}/parts?api_key=text HTTP/1.1
Host: api.roboflow.com
Accept: */*
List of batch parts.
{
"status": "ok",
"parts": [
{
"partName": "text"
}
]
}ダウンロード URL を一覧表示
Your Roboflow workspace identifier.
Batch identifier. Lowercase, max 64 chars: letters, digits, hyphens, underscores.
^[a-z0-9_-]+$Your Roboflow API key.
Pagination token from a previous response.
Filter by part name (from the list parts response).
Paginated list of download URLs.
okToken for fetching the next page of results. null if no more pages.
GET /data-staging/v1/external/{workspace}/batches/{batch_id}/list?api_key=text HTTP/1.1
Host: api.roboflow.com
Accept: */*
Paginated list of download URLs.
{
"status": "ok",
"filesMetadata": [
{
"downloadURL": "text",
"fileName": "text",
"partName": "text",
"shardId": "text",
"contentType": "text",
"nestedContentType": "text"
}
],
"nextPageToken": "text"
}Webhook 通知
