Create a Workflow block

Full developer guide to writing a Workflow block: manifests, inputs, outputs, batch processing, flow control, and dimensionality.

This is the deep guide to authoring a Block class in Python. If you only need a small piece of custom logic inside one Workflow, a dynamic Python block defined inline in the Workflow Definition is usually enough - see Custom Blocks.

Workflows blocks development requires an understanding of the Workflow Ecosystem. Before diving deeper into the details, let's summarize the required knowledge:

Understanding of Workflow execution, in particular:

  • what is the relation of Workflow blocks and steps in Workflow definition

  • how Workflow blocks and their manifests are used by Workflows Compiler

  • what is the dimensionality level of batch-oriented data passing through Workflow

  • how Execution Engine interacts with step, regarding its inputs and outputs

  • what is the nature and role of Workflow kinds

  • understanding how pydantic works

Environment setup

As you will soon see, creating a Workflow block is simply a matter of defining a Python class that implements a specific interface. This design allows you to run the block using the Python interpreter, just like any other Python code. However, you may encounter difficulties when assembling all the required inputs, which would normally be provided by other blocks during Workflow execution. Therefore, it's important to set up the development environment properly for a smooth workflow. We recommend following these steps as part of the standard development process (initial steps can be skipped for subsequent contributions):

  1. Set up the conda environment and install main dependencies of inference, as described in inference contributor guide.

  2. Familiarize yourself with the organization of the Workflows codebase.

  3. Create a minimalistic block - You’ll learn how to do this in the following sections. Start by implementing a simple block manifest and basic logic to ensure the block runs as expected.

  4. Add the block to the plugin - Once your block is created, add it to the list of blocks exported from the plugin. If you're adding the block to the Roboflow Core plugin, make sure to add an entry for your block in the loader.py. If you forget this step, your block won’t be visible!

  5. Iterate and refine your block - Continue developing and running your block until you’re satisfied with the results. The sections below explain how to iterate on your block in various scenarios.

Running your blocks using Workflows UI

We recommend running the inference server with a mounted volume (which is much faster than re-building inference server on each change):

and connecting your local server to Roboflow UI:

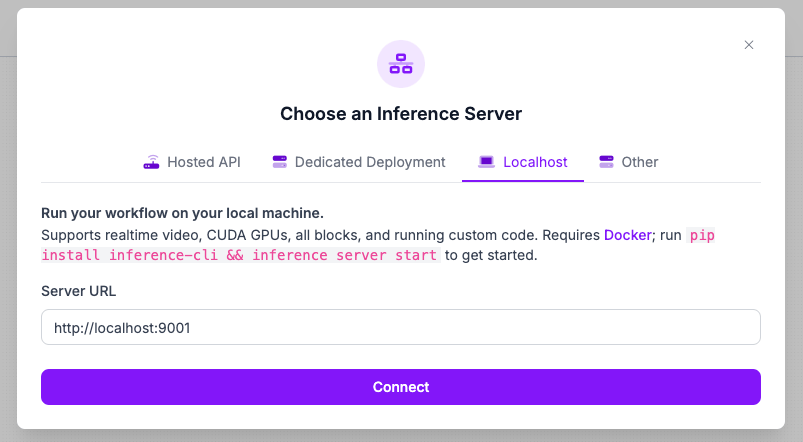

Connecting a local Inference Server to the Roboflow Workflows UI

to quickly run previews:

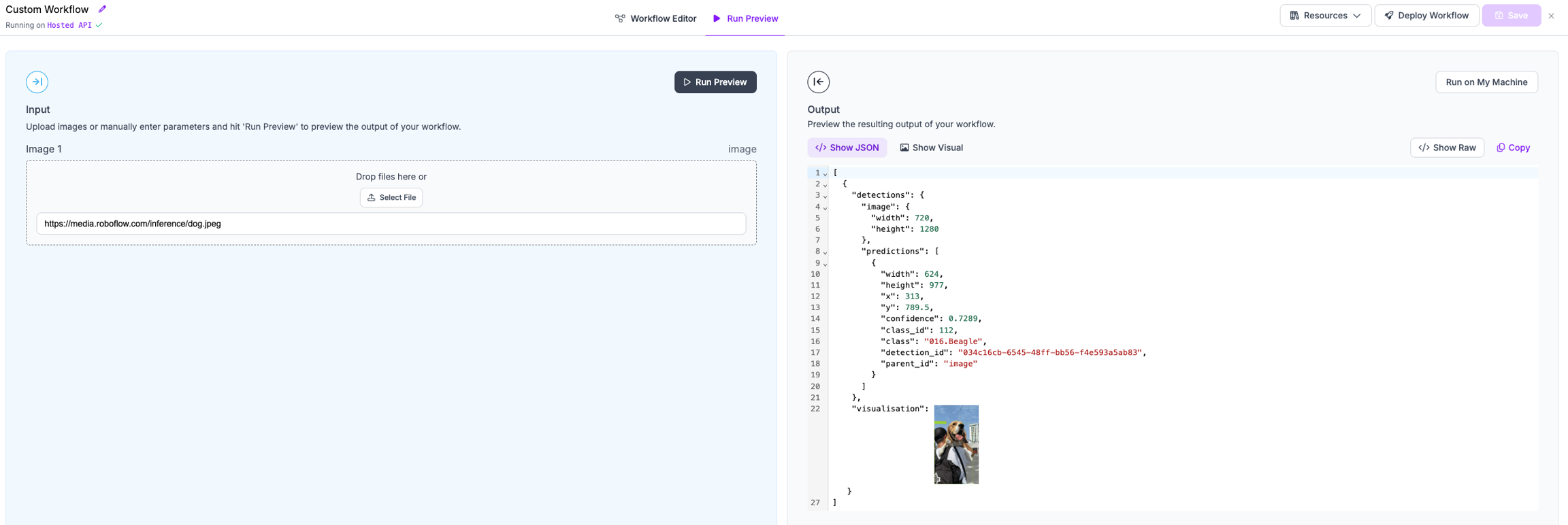

Workflow preview in the Roboflow UI
My block requires extra dependencies - I cannot use pre-built `inference` server

It's natural that your blocks may sometimes require additional dependencies. To add a dependency, simply include it in one of the requirements fileshat are installed in the relevant Docker image (usually the CPU build of the inference server).

Afterward, run:

You can then run your local build by specifying the test tag you just created:

Running your blocks without Workflows UI

For contributors without access to the Roboflow platform, we recommend running the server as mentioned in the section above. However, instead of using the UI editor, you will need to create a simple Workflow definition and send a request to the server.

Running your Workflow without UI

The following code snippet demonstrates how to send a request to the inference server to run a Workflow. The inference_sdk is included with the inference package as a lightweight client library for our server.

Recommended way for regular contributors

Creating integration tests in the tests/workflows/integration_tests/execution directory is a natural part of the development iteration process. This approach allows you to develop and test simultaneously, providing valuable feedback as you refine your code. Although it requires some experience, it significantly enhances long-term code maintenance.

The process is straightforward:

  1. Create a New Test Module: For example, name it test_workflows_with_my_custom_block.py.

  2. Develop Example Workflows: Create one or more example Workflows. It would be best if your block cooperates with other blocks from the ecosystem.

  3. Run Tests with Sample Data: Execute these Workflows in your tests using sample data (you can explore our fixtures to find example data we usually use).

  4. Assert Expected Results: Validate that the results match your expectations.

By incorporating testing into your development flow, you ensure that your block remains stable over time and effectively interacts with existing blocks, enhancing the expressiveness of your work!

You can run your test using the following command:

Feel free to reference other tests for examples or use the following template:

Integration test template

  • In line 2, you’ll find the model_manager fixture, which is typically required by model blocks. This fixture provides the ModelManager abstraction from inference, used for loading and unloading models.

  • Line 3 defines a fixture that includes an image of two dogs (explore other fixtures to find more example images).

  • Line 4 is an optional fixture you may want to use if any of the blocks in your tested workflow require a Roboflow API key. If that’s the case, export the ROBOFLOW_API_KEY environment variable with a valid key before running the test.

  • Lines 7-11 provide the setup for the initialization parameters of the blocks that the Execution Engine will create at runtime, based on your Workflow definition.

  • Lines 19-23 demonstrate how to run a Workflow by injecting input parameters. Please ensure that the keys in runtime_parameters match the inputs declared in your Workflow definition.

  • Starting from line 26, you’ll find example assertions within the test.

Prototypes

To create a Workflow block you need some amount of imports from the core of Workflows library. Here is the list of imports that you may find useful while creating a block:

The most important are:

  • WorkflowBlock - base class for your block

  • WorkflowBlockManifest - base class for block manifest

Understanding internal data representation

You may have noticed that we recommend importing the Batch and WorkflowImageData classes, which are fundamental components used when constructing building blocks in our system. For a deeper understanding of how these classes fit into the overall architecture, we encourage you to refer to the Data Representations page for more detailed information.

Block manifest

A manifest is a crucial component of a Workflow block that defines a prototype for step declaration that can be placed in a Workflow definition to use the block. In particular, it:

  • Uses pydantic to power syntax parsing of Workflows definitions: It inherits from pydantic BaseModel features to parse and validate Workflow definitions. This schema can also be automatically exported to a format compatible with the Workflows UI, thanks to pydantic's integration with the OpenAPI standard.

  • Defines Data Bindings: It specifies which fields in the manifest are selectors for data flowing through the workflow during execution and indicates their kinds.

  • Describes Block Outputs: It outlines the outputs that the block will produce.

  • Specifies Dimensionality: It details the properties related to input and output dimensionality.

  • Indicates Batch Inputs and Empty Values: It informs the Execution Engine whether the step accepts batch inputs and empty values.

  • Ensures Compatibility: It dictates the compatibility with different Execution Engine versions to maintain stability. For more details, see versioning.

Scaffolding for manifest

To understand how manifests work, let's define one step-by-step. The example block that we build here will be calculating images similarity. We start from imports and class scaffolding:

This is the minimal representation of a manifest. It defines two special fields that are important for Compiler and Execution engine:

  • type - required to parse syntax of Workflows definitions based on dynamic pool of blocks - this is the pydantic type discriminator that lets the Compiler understand which block manifest is to be verified when parsing specific steps in a Workflow definition

  • name - this property will be used to give the step a unique name and let other steps selects it via selectors

Adding inputs

We want our step to take two inputs with images to be compared.

Adding inputs

Let's see how to add definitions of those inputs to manifest:

  • in the lines 2-9, we've added a couple of imports to ensure that we have everything needed

  • line 20 defines image_1 parameter - as manifest is prototype for Workflow Definition, the only way to tell about image to be used by step is to provide selector - we have a specialised type in core library that can be used - Selector. If you look deeper into codebase, you will discover this is type alias constructor function - telling pydantic to expect string matching $inputs.{name} and $steps.{name}.* patterns respectively, additionally providing extra schema field metadata that tells Workflows ecosystem components that the kind of data behind selector is image. important note: we denote kind as list - the list of specific kinds is interpreted as union of kinds by Execution Engine.

  • denoting pydantic Field(...) attribute in the last parts of line 20 is optional, yet appreciated, especially for blocks intended to cooperate with Workflows UI

  • starting in line 23, you can find definition of image_2 parameter which is very similar to image_1.

Such definition of manifest can handle the following step declaration in Workflow definition:

This definition will make the Compiler and Execution Engine:

  • initialize the step from Workflow block declaring type my_plugin/images_similarity@v1

  • supply two parameters for the steps run method:

    • input_1 of type WorkflowImageData which will be filled with image submitted as Workflow execution input named my_image.

    • imput_2 of type WorkflowImageData which will be generated at runtime, by another step called image_transformation

Adding parameters to the manifest

Let's now add the parameter that will influence step execution.

Adding parameter to the manifest

  • line 9 imports float_zero_to_one kind definition which will be used to define the parameter.

  • in line 27 we start defining parameter called similarity_threshold. Manifest will accept either float values or selector to workflow input of kind float_zero_to_one, imported in line 9.

Such definition of manifest can handle the following step declaration in Workflow definition:

or alternatively:

Declaring block outputs

We have successfully defined inputs for our block, but we are still missing couple of elements required to successfully run blocks. Let's define block outputs.

Declaring block outputs

Minimal set of information required is outputs description. Additionally, to increase block stability, we advise to provide information about execution engine compatibility.

  • line 5 imports class that is used to describe step outputs

  • line 11 imports boolean kind to be used in outputs definitions

  • lines 32-39 declare class method to specify outputs from the block - each entry in list declare one return property for each batch element and its kind. Our block will return boolean flag images_match for each pair of images.

  • lines 41-43 declare compatibility of the block with Execution Engine - see versioning page for more details

As a result of those changes:

  • Execution Engine would understand that steps created based on this block are supposed to deliver specified outputs and other steps can refer to those outputs in their inputs

  • the blocks loading mechanism will not load the block given that Execution Engine is not in version v1

LEARN MORE: Dynamic outputs

Some blocks may not be able to arbitrailry define their outputs using classmethod - regardless of the content of step manifest that is available after parsing. To support this we introduced the following convention:

  • classmethod describe_outputs(...) shall return list with one element of name * and kind * (aka WILDCARD_KIND)

  • additionally, block manifest should implement instance method get_actual_outputs(...) that provides list of actual outputs that can be generated based on filled manifest data

Definition of block class

At this stage, the manifest of our simple block is ready, we will continue with our example. You can check out the advanced topics section for more details that would just be a distractions now.

Base implementation

Having the manifest ready, we can prepare baseline implementation of the block.

Block scaffolding

  • lines 1, 5-6 and 8-11 added changes into import surtucture to provide additional symbols required to properly define block class and all of its methods signatures

  • lines 53-55 defines class method get_manifest(...) to simply return the manifest class we cretaed earlier

  • lines 57-63 define run(...) function, which Execution Engine will invoke with data to get desired results. Please note that manifest fields defining inputs of image kind are marked as WorkflowImageData - which is compliant with intenal data representation of image kind described in kind documentation.

Providing implementation for block logic

Let's now add an example implementation of the run(...) method to our block, such that it can produce meaningful results.

The Content of this section is supposed to provide examples on how to interact with the Workflow ecosystem as block creator, rather than providing robust implementation of the block.

Implementation of `run(...)` method

  • in line 3 we import OpenCV

  • lines 55-57 defines block constructor, thanks to this - state of block is initialised once and live through consecutive invocation of run(...) method - for instance when Execution Engine runs on consecutive frames of video

  • lines 69-80 provide implementation of block functionality - the details are trully not important regarding Workflows ecosystem, but there are few details you should focus:

    • lines 69 and 70 make use of WorkflowImageData abstraction, showcasing how numpy_image property can be used to get np.ndarray from internal representation of images in Workflows. We advise to expole remaining properties of WorkflowImageData to discover more.

    • result of workflow block execution, declared in lines 78-80 is in our case just a dictionary with the keys being the names of outputs declared in manifest, in line 43. Be sure to provide all declared outputs - otherwise Execution Engine will raise error.

Exposing block in plugin

Now, your block is ready to be used, but Execution Engine is not aware of its existence. This is because no registered plugin exports the block you just created. Details of blocks bundling are be covered in separate page, but the remaining thing to do is to add block class into list returned from your plugins' load_blocks(...) function:

Advanced topics

Blocks processing batches of inputs

Sometimes, performance of your block may benefit if all input data is processed at once as batch. This may happen for models running on GPU. Such mode of operation is supported for Workflows blocks - here is the example on how to use it for your block.

Implementation of blocks accepting batches

  • line 13 imports Batch from core of workflows library - this class represent container which is veri similar to list (but read-only) to keep batch elements

  • lines 40-42 define class method that changes default behaviour of the block and make it capable to process batches - we are marking each parameter that the run(...) method recognizes as batch-oriented.

  • changes introduced above made the signature of run(...) method to change, now image_1 and image_2 are not instances of WorkflowImageData, but rather batches of elements of this type. Important note: having multiple batch-oriented parameters we expect that those batches would have the elements related to each other at corresponding positions - such that our block comparing image_1[1] into image_2[1] actually performs logically meaningful operation.

  • lines 74-77, 85-86 present changes that needed to be introduced to run processing across all batch elements - showcasing how to iterate over batch elements if needed

  • it is important to note how outputs are constructed in line 85 - each element of batch will be given its entry in the list which is returned from run(...) method. Order must be aligned with order of batch elements. Each output dictionary must provide all keys declared in block outputs.

Inputs that accept both batches and scalars

It is relatively unlikely, but may happen that your block would need to accept both batch-oriented data and scalars within a single input parameter. Execution Engine recognises that using get_parameters_accepting_batches_and_scalars(...) method of block manifest. Take a look at the example provided below:

  • lines 20-22 specify manifest parameters that are expected to accept mixed (both scalar and batch-oriented) input data - point out that at this stage there is no difference in definition compared to previous examples.

  • lines 24-26 specify get_parameters_accepting_batches_and_scalars(...) method to tell the Execution Engine that block run(...) method can handle both scalar and batch-oriented inputs for the specified parameters.

  • lines 45-47 depict the parameters of mixed nature in run(...) method signature.

  • line 49 reveals that we must keep track of the expected output size within the block logic. That's why it is quite tricky to implement blocks with mixed inputs. Normally, when block run(...) method operates on scalars - in majority of cases (exceptions will be described below) - the metod constructs single output dictionary. Similairly, when batch-oriented inputs are accepted - those inputs define expected output size. In this case, however, we must manually detect batches and catch their sizes.

  • lines 50-54 showcase how we usually deal with mixed parameters - applying different logic when batch-oriented data is detected

  • as mentioned earlier, output construction must also be adjusted to the nature of mixed inputs - which is illustrated in lines 65-70

Implementation of flow-control block

Flow-control blocks differs quite substantially from other blocks that just process the data. Here we will show how to create a flow control block, but first - a little bit of theory:

  • flow-control block is the block that declares compatibility with step selectors in their manifest (selector to step is defined as $steps.{step_name} - similar to step output selector, but without specification of output name)

  • flow-control blocks cannot register outputs, they are meant to return FlowControl objects

  • FlowControl object specify next steps (from selectors provided in step manifest) that for given batch element (SIMD flow-control) or whole workflow execution (non-SIMD flow-control) should pick up next

Implementation of flow-control

Example provides and comments out implementation of random continue block

  • line 10 imports type annotation for step selector which will be used to notify Execution Engine that the block controls the flow

  • line 14 imports FlowControl class which is the only viable response from flow-control block

  • line 28 defines list of step selectors which effectively turns the block into flow-control one

  • lines 55 and 56 show how to construct output - FlowControl object accept context being None, string or list of strings - None represent flow termination for the batch element, strings are expected to be selectors for next steps, passed in input.

Implementation of flow-control - batch variant

Example provides and comments out implementation of random continue block

  • line 11 imports type annotation for step selector which will be used to notify Execution Engine that the block controls the flow

  • line 15 imports FlowControl class which is the only viable response from flow-control block

  • lines 29-32 defines list of step selectors which effectively turns the block into flow-control one

  • lines 38-40 contain definition of get_parameters_accepting_batches(...) method telling Execution Engine that block run(...) method expects batch-oriented image parameter.

  • line 59 revels that we need to return flow-control guide for each and every element of image batch.

  • to achieve that end, in line 60 we iterate over the contntent of batch.

  • lines 61-63 show how to construct output - FlowControl object accept context being None, string or list of strings - None represent flow termination for the batch element, strings are expected to be selectors for next steps, passed in input.

Nested selectors

Some block will require list of selectors or dictionary of selectors to be provided in block manifest field. Version v1 of Execution Engine supports only one level of nesting - so list of lists of selectors or dictionary with list of selectors will not be recognised properly.

Practical use cases showcasing usage of nested selectors are presented below.

Fusion of predictions from variable number of models

Let's assume that you want to build a block to get majority vote on multiple classifiers predictions - then you would like your run method to look like that:

Nested selectors - models ensemble

  • lines 23-26 depict how to define manifest field capable of accepting list of selectors

  • line 50 shows what to expect as input to block's run(...) method - list of objects which are representation of specific kind. If the block accepted batches, the input type of predictions field would be List[Batch[sv.Detections]

Such block is compatible with the following step declaration:

Block with data transformations allowing dynamic parameters

Occasionally, blocks may need to accept group of "named" selectors, which names and values are to be defined by creator of Workflow definition. In such cases, block manifest shall accept dictionary of selectors, where keys serve as names for those selectors.

Nested selectors - named selectors

  • lines 22-25 depict how to define manifest field capable of accepting dictionary of selectors - providing mapping between selector name and value

  • line 46 shows what to expect as input to block's run(...) method - dict of objects which are reffered with selectors. If the block accepted batches, the input type of data field would be Dict[str, Union[Batch[Any], Any]]. In non-batch cases, non-batch-oriented data referenced by selector is automatically broadcasted, whereas for blocks accepting batches - Batch container wraps only batch-oriented inputs, with other inputs being passed as singular values.

Such block is compatible with the following step declaration:

Practical implications will be the following:

  • under data["a"] inside run(...) you will be able to find model's predictions - like sv.Detections if model_1 is object-detection model

  • under data["b"] inside run(...), you will find value of input parameter named my_parameter

Inputs and output dimensionality vs run(...) method

The dimensionality of block inputs plays a crucial role in shaping the run(...) method’s signature, and that's why the system enforces strict bounds on the differences in dimensionality levels between inputs (with the maximum allowed difference being 1). This restriction is critical for ensuring consistency and predictability when writing blocks.

If dimensionality differences weren't controlled, it would be difficult to predict the structure of the run(...) method, making development harder and less reliable. That’s why validation of this property is strictly enforced during the Workflow compilation process.

Similarly, the output dimensionality also affects the method signature and the format of the expected output. The ecosystem supports the following scenarios:

  • all inputs have the same dimensionality and outputs does not change dimensionality - baseline case

  • all inputs have the same dimensionality and output decreases dimensionality

  • all inputs have the same dimensionality and output increases dimensionality

  • inputs have different dimensionality and output is allowed to keep the dimensionality of reference input

Other combinations of input/output dimensionalities are not allowed to ensure consistency and to prevent ambiguity in the method signatures.

Impact of dimensionality on `run(...)` method - batches disabled

output dimensionality increase

In this example, we perform dynamic crop of image based on predictions.

  • in lines 28-30 manifest class declares output dimensionality offset - value 1 should be understood as adding 1 to dimensionality level

  • point out, that in line 63, block eliminates empty images from further processing but placing None instead of dictionatry with outputs. This would utilise the same Execution Engine behaviour that is used for conditional execution - datapoint will be eliminated from downstream processing (unless steps requesting empty inputs are present down the line).

  • in lines 64-65 results for single input image and predictions are collected - it is meant to be list of dictionares containing all registered outputs as keys. Execution engine will understand that the step returns batch of elements for each input element and create nested sturcures of indices to keep track of during execution of downstream steps.

output dimensionality decrease

In this example, the block visualises crops predictions and creates tiles presenting all crops predictions in single output image.

  • in lines 30-32 manifest class declares output dimensionality offset - value -1 should be understood as decreasing dimensionality level by 1

  • in lines 34-36 manifest class declares run(...) method inputs that will be subject to auto-batch casting ensuring that the signature is always stable. Auto-batch casting was introduced in Execution Engine v0.1.6.0

  • refer to changelog for more details.

  • in lines 53-55 you can see the impact of output dimensionality decrease on the method signature. First two inputs (declared in line 36) are artificially wrapped in Batch[] container, whereas scalar_parameter remains primitive type. This is done by Execution Engine automatically on output dimensionality decrease when all inputs have the same dimensionality to enable access to all elements occupying the last dimensionality level. Obviously, only elements related to the same element from top-level batch will be grouped. For instance, if you had two input images that you cropped - crops from those two different images will be grouped separately.

  • lines 65-66 illustrate how output is constructed - single value is returned and that value will be indexed by Execution Engine in output batch with reduced dimensionality

different input dimensionalities

In this example, block merges detections which were predicted based on crops of original image - result is to provide single detections with all partial ones being merged.

  • in lines 31-36 manifest class declares input dimensionalities offset, indicating image parameter being top-level and image_predictions being nested batch of predictions

  • whenever different input dimensionalities are declared, dimensionality reference property must be pointed (see lines 38-40) - this dimensionality level would be used to calculate output dimensionality - in this particular case, we specify image. This choice has an implication in the expected format of result - in the chosen scenario we are supposed to return single dictionary with all registered outputs keys. If our choice is image_predictions, we would return list of dictionaries (of size equal to length of image_predictions batch). In other worlds, get_dimensionality_reference_property(...) which dimensionality level should be associated to the output.

  • lines 63-64 present impact of dimensionality offsets specified in lines 31-36. It is clearly visible that image_predictions is a nested batch regarding image. Obviously, only nested predictions relevant for the specific images are grouped in batch and provided to the method in runtime.

  • as mentioned earlier, line 69 construct output being single dictionary, as we register output at dimensionality level of image (which was also shipped as single element)

Impact of dimensionality on `run(...)` method - batches enabled

output dimensionality increase

In this example, we perform dynamic crop of image based on predictions.

  • in lines 29-31 manifest declares that block accepts batches of inputs

  • in lines 33-35 manifest class declares output dimensionality offset - value 1 should be understood as adding 1 to dimensionality level

  • in lines 55-66, signature of input parameters reflects that the run(...) method runs against inputs of the same dimensionality and those inputs are provided in batches

  • point out, that in line 70, block eliminates empty images from further processing but placing None instead of dictionatry with outputs. This would utilise the same Execution Engine behaviour that is used for conditional execution - datapoint will be eliminated from downstream processing (unless steps requesting empty inputs are present down the line).

  • construction of the output, presented in lines 71-73 indicates two levels of nesting. First of all, block operates on batches, so it is expected to return list of outputs, one output for each input batch element. Additionally, this output element for each input batch element turns out to be nested batch - hence for each input iage and prediction, block generates list of outputs - elements of that list are dictionaries providing values for each declared output.

output dimensionality decrease

In this example, the block visualises crops predictions and creates tiles presenting all crops predictions in single output image.

  • lines 29-31 manifest that block is expected to take batches as input

  • in lines 33-35 manifest class declares output dimensionality offset - value -1 should be understood as decreasing dimensionality level by 1

  • in lines 52-53 you can see the impact of output dimensionality decrease and batch processing on the method signature. First "layer" of Batch[] is a side effect of the fact that manifest declared that block accepts batches of inputs. The second "layer" comes from output dimensionality decrease. Execution Engine wrapps up the dimension to be reduced into additional Batch[] container porvided in inputs, such that programmer is able to collect all nested batches elements that belong to specific top-level batch element.

  • lines 66-67 illustrate how output is constructed - for each top-level batch element, block aggregates all crops and predictions and creates a single tile. As block accepts batches of inputs, this procedure end up with one tile for each top-level batch element - hence list of dictionaries is expected to be returned.

different input dimensionalities

In this example, block merges detections which were predicted based on crops of original image - result is to provide single detections with all partial ones being merged.

  • lines 31-33 manifest that block is expected to take batches as input

  • in lines 35-40 manifest class declares input dimensionalities offset, indicating image parameter being top-level and image_predictions being nested batch of predictions

  • whenever different input dimensionalities are declared, dimensionality reference property must be pointed (see lines 42-44) - this dimensionality level would be used to calculate output dimensionality - in this particular case, we specify image. This choice has an implication in the expected format of result - in the chosen scenario we are supposed to return single dictionary for each element of image batch. If our choice is image_predictions, we would return list of dictionaries (of size equal to length of nested image_predictions batch) for each input image batch element.

  • lines 66-67 present impact of dimensionality offsets specified in lines 35-40 as well as the declararion of batch processing from lines 32-34. First "layer" of Batch[] container comes from the latter, nested Batch[Batch[]] for images_predictions comes from the definition of input dimensionality offset. It is clearly visible that image_predictions holds batch of predictions relevant for specific elements of image batch.

  • as mentioned earlier, lines 76-77 construct output being single dictionary for each element of image batch

Block accepting empty inputs

As discussed earlier, some batch elements may become "empty" during the execution of a Workflow. This can happen due to several factors:

  • Flow-control mechanisms: Certain branches of execution can mask specific batch elements, preventing them from being processed in subsequent steps.

  • In data-processing blocks: In some cases, a block may not be able to produce a meaningful output for a specific data point. For example, a Dynamic Crop block cannot generate a cropped image if the bounding box size is zero.

Some blocks are designed to handle these empty inputs, such as block that can replace missing outputs with default values. This block can be particularly useful when constructing structured outputs in a Workflow, ensuring that even if some elements are empty, the output lacks missing elements making it harder to parse.

Block accepting empty inputs

  • in lines 20-22 you may find declaration stating that block acccepts empt inputs

  • a consequence of lines 20-22 is visible in line 41, when signature states that input Batch may contain empty elements that needs to be handled. In fact - the block generates "artificial" output substituting empty value, which makes it possible for those outputs to be "visible" for blocks not accepting empty inputs that refer to the output of this block. You should assume that each input that is substituted by Execution Engine with data generated in runtime may provide optional elements.

Block with custom constructor parameters

Some blocks may require objects constructed by outside world to work. In such scenario, Workflows Execution Engine job is to transfer those entities to the block, making it possible to be used. The mechanism is described in the page presenting Workflows Compiler, as this is the component responsible for dynamic construction of steps from blocks classes.

Constructor parameters must be:

  • requested by block - using class method WorkflowBlock.get_init_parameters(...)

  • provided in the environment running Workflows Execution Engine:

Let's see how to request init parameters while defining block.

Block requesting constructor parameters

  • lines 30-31 declare class constructor which is not parameter-free

  • to inform Execution Engine that block requires custom initialisation, get_init_parameters(...) method in lines 33-35 enlists names of all parameters that must be provided

Air-gapped / offline availability metadata

When building blocks for environments that may run without internet access (air-gapped deployments), WorkflowBlockManifest exposes three optional classmethods. Override them to help the air-gapped workflow builder determine which blocks are usable offline.

All three have sensible defaults so existing blocks require no changes.

get_air_gapped_availability()

Declares whether the block can operate without internet. Override this in blocks that call cloud APIs (OpenAI, Anthropic, etc.).

The default returns AirGappedAvailability(available=True) - suitable for pure-logic blocks, local-network blocks, and any block that does not need external connectivity.

get_supported_model_variants()

For foundation-model blocks whose weights can be pre-cached locally, return the list of model variant IDs. The block is considered available offline if any variant has cached artifacts.

The default returns None, meaning the block does not depend on locally-cached model weights.

get_compatible_task_types()

For Roboflow-model blocks that accept a user-trained model, return the task types this block can handle. The air-gapped builder uses this to match cached user models to compatible blocks.

The default returns None - appropriate for blocks that are not parameterised by a Roboflow model (foundation models, logic blocks, sinks, etc.).

Runtime restrictions

Some blocks behave differently - or fail outright - depending on the runtime they are deployed in (hosted serverless, dedicated deployment, self-hosted, inference pipeline), the step execution mode (local vs. remote), and the input mode (image vs. video). Override get_restrictions() on WorkflowBlockManifest to declare those caveats once, in the block, so the execution engine, the schema endpoint, and the auto-generated block gallery can all surface them consistently.

The default returns [], so existing blocks need no changes.

Severity: soft vs. hard

Each restriction carries a Severity:

  • Severity.SOFT - the block runs to completion and returns the right output shape, but the values are degraded or meaningless (e.g. tracker IDs reset across requests, cooldown does not throttle, file is written to ephemeral disk). The workflow still runs; the result is just not what the user expects.

  • Severity.HARD - the block does not run / raises / cannot produce a usable output in this runtime. The engine should refuse to compile or fail-fast.

Scoping a restriction

A RuntimeRestriction can scope itself along any combination of three axes. When an axis is left as None, the restriction applies to every value of that axis.

  • applies_to_runtimes: Runtime.HOSTED_SERVERLESS, Runtime.DEDICATED_DEPLOYMENT, Runtime.SELF_HOSTED_CPU, Runtime.SELF_HOSTED_GPU, Runtime.INFERENCE_PIPELINE.

  • applies_to_step_execution_modes: StepExecutionMode.LOCAL, StepExecutionMode.REMOTE.

  • applies_to_input_modes: RuntimeInputMode.IMAGE, RuntimeInputMode.VIDEO.

The note field is a one-line, human-readable explanation of the failure mode or degraded behavior - describe what happens (e.g. "track_ids reset between requests", "writes to ephemeral /tmp"), not abstract preconditions.

Shared presets

Most caveats fall into a handful of common patterns, so reusable presets are exported alongside the dataclasses to keep wording consistent across the codebase. Reach for these first:

  • STATEFUL_VIDEO_HTTP_SOFT_RESTRICTION - for video-tracking / counting / aggregation blocks whose per-video state lives in process memory and resets between stateless HTTP requests.

  • COOLDOWN_HTTP_SOFT_RESTRICTION - for blocks whose cooldown / rate-limit timer is held in process memory and therefore does not throttle on multi-replica HTTP runtimes.

  • STILL_IMAGE_INPUT_SOFT_RESTRICTION - for blocks that depend on temporal context (video or repeated frames) and provide little or no benefit on still images.

Example

A line-counter block that maintains per-video state and is also meaningless on a still image declares both restrictions:

A custom restriction (e.g. a Severity.HARD block that requires GPU hardware that is not present on the hosted serverless runtime) is declared inline:

Restrictions declared this way are surfaced in three places:

  1. The describe_interface HTTP payload (via RuntimeRestriction.to_dict()), so workflow clients and builders can warn users before a workflow is run.

  2. The auto-generated block gallery page for the block, under a "Runtime compatibility" section right after Properties.

  3. The execution engine, which can choose to fail-fast on Severity.HARD restrictions for the current runtime.

Declaring dependent resources

Many blocks require external resources when they run: Roboflow-trained or foundation model weights, Roboflow projects (e.g. active-learning targets, dataset-upload destinations) or third-party hosted models (OpenAI, Anthropic, OpenRouter, ...). Until a workflow actually executes, nothing in the system knows which resources it will need.

Overriding discover_dependent_resources() on the block manifest closes that gap: the method is called on the parsed manifest instance, so it can compute the declaration from the concrete field values of a given step. That lets callers enumerate the resources of a whole workflow statically — at compile time, without executing anything — which enables use cases such as pre-loading model weights for predictable execution times or verifying upfront that an API key has access to every referenced model and project.

The default returns None, which means the block does not declare its dependencies — callers must treat it as unknown. That is deliberately distinct from [], which positively declares that the block needs no external resources. Existing blocks need no changes; blocks that use resources should override.

The resource envelope

Blocks do not invent resource shapes — the envelope is regulated by the Execution Engine. A DependentResource pairs a resource_type with a typed (pydantic) metadata entity registered for that type:

  • DependentResourceType.ROBOFLOW_PLATFORM_MODEL → RoboflowPlatformModelMetadata(model_id, required_action, execution_location) — models served through the Roboflow platform, including foundation / core models with synthesized ids (e.g. clip/ViT-B-32). required_action states the nature of usage: ModelRequiredAction.EXECUTION (weights are pulled or inference is requested) or ModelRequiredAction.ACCESS (the model entity only needs to be reachable on the platform — e.g. a monitoring sink attaching metadata to it). For execution, execution_location is LOCAL, REMOTE, or ENVIRONMENT_DEFINED when the locality is decided at runtime by WORKFLOWS_STEP_EXECUTION_MODE and cannot be determined at compile time (the default for model blocks that dispatch on step execution mode).

  • DependentResourceType.ROBOFLOW_PLATFORM_PROJECT → RoboflowPlatformProjectMetadata(project_url) — Roboflow projects the block reads from or writes to.

  • DependentResourceType.THIRD_PARTY_MODEL → ThirdPartyModelMetadata(provider, model_id) — models executed by an external provider; by definition remote execution.

Factory helpers keep implementations one-liners: roboflow_platform_model(), roboflow_platform_project(), third_party_model().

Selector values and runtime resolution

Manifest fields may hold workflow selectors instead of concrete values. The declaration returns such values verbatim — the block never resolves selectors. Callers can substitute $inputs.<name> references once runtime parameters are known; $steps.<name>.<property> references are not statically resolvable at all. Every metadata entity exposes requires_runtime_resolution() so callers can tell a concrete identifier from a reference that still needs resolving.

When the final identifier is a function of the field value (a family prefix like clip/<version>, a catalog lookup), the substituted input value alone is not the executed id. Such declarations attach a model_id_resolver — a callable with everything it needs latched in its closure — that turns the substituted value into the final id. The resolver is an in-process aid only: it is excluded from serialization, JSON schema and equality. In-process callers (e.g. the engine's first-run pre-loading) invoke it after substituting the input value. A resolver may return None to declare the value statically unresolvable (the final id depends on more than that one value) — callers skip such dependencies and execution resolves them; raising means the value is genuinely invalid.

Mirror what run() loads

The declared identifier must be exactly the one run() will request — including ids synthesized from version fields. If your block builds f"my_family/{self.version}" at the load_core_model(...) call site, the declaration must build the same id (and fall back to the verbatim selector when the version field holds one).

Examples

A model block declaring its model and an optional active-learning target project:

A block whose model id is synthesized from a version field:

A sink that only references a model entity without executing it:

When not to declare

Fields that merely carry a model-id- or project-kind value as generic payload (e.g. a webhook sink forwarding values as query parameters) are not resource dependencies — such blocks intentionally keep the default.

Contributors to core repository should acknowledge that unit test (tests/workflows/unit_tests/core_steps/test_dependent_resources.py) guards the boundary: every core block whose manifest declares a field with the roboflow_model_id or roboflow_project kind must either override discover_dependent_resources() or be explicitly allowlisted as carry-only.

Blocks that load their model weights outside the model manager (verify what run() actually does, not whether model_manager appears among init parameters) should not implement the method for now — their dependencies stay undeclared (None).

Custom python blocks always report None: their code is opaque to static analysis, so unknown is the only honest answer.

PreviousVersioningNextBundling blocks into a plugin

Last updated

Was this helpful?
